D.I.Y Single DIN to Double DIN Conversion MOD
I bought this kit from eBay UK, cost SG$108
Brought this Single DIN Centre Bottom Bracket from JapanParts, cost SG$70
This is Mit Lancer CS3 stock Single DIN Fascia
Remove the HU with removal key, unplug all cables
Pull out the 3 a/c knobs, unscrew 2 hidden screw and pull out the Fascia
Unscrew other 2 screws for bottom centre bracket and remove the bracket
Needed tools.
1) Brush - Clear the dust
2) Saw - To cut the a/c knob
3) File & sandpaper - To make nice and clean cutting edge
4) Cloth - To protect the Fascia from scratches
Firstly, remove the Label Sticker with care
Not thinking so much, I made my 1st cut on the Right

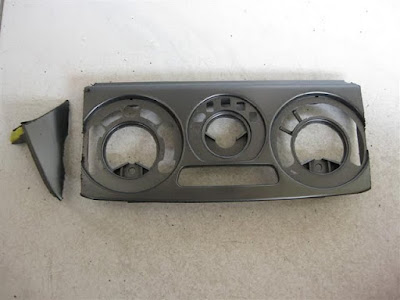

2nd cut on the left, which made the stock Fascia into 2 pieces
3rd cut, on the Right a/c Fascia
4th cut, on the left a/c Fascia
5th cut, on the top of a/c Fascia
Shack! Rest for awhile and do some filing to the 3 cut side, make sure all sides are straight
6th cut, on the bottom of a/c Fascia
Now, the shape is OUT. So file file file and use sandpaper to polish polish polish
And DONE on the a/c Fascia

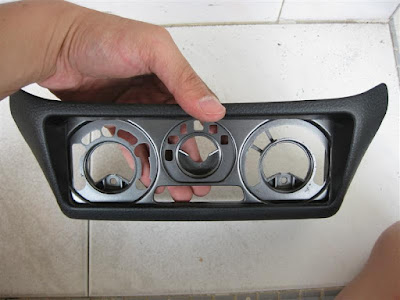

Take the Bottom Centre Single bracket, put the a/c Fascia and continue to do fine filing
Once done with all the filing, brush and clean up the a/c Fascia and put back the Label Sticker
NOW, is time to go back to car and install the long await a/c panel.
(Spent 4hrs relocating the a/c controller + securing the Fascia)
Done with a/c, now the Double DIN Fascia!

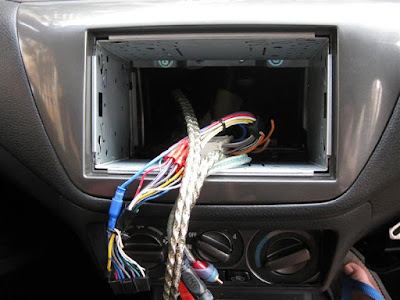

Metal bracket of HU. (JapanParts does not provide this bracket but eBay UK doesn't look stock)
Time for HU.
I put back my Single DIN first, now starting to hunt for DVD HU lobang.
The back cover was a sponge came together with 2DIN Fascia, dunno for wat so I use it to cover the empty pocket first
D.I.Y 2DIN MOD Project Successfully Completed!!!
Let's take a closer look on the A/C Fascia.
At night.
Total hours taken > 8 HOURS incl. lunch and rest =)
30mins > Dissembling Single DIN Fascia
30mins > 1st to 6th cutting job
2hrs > Filing and polishing with Sandpaper
4hrs > Relocating and secure a/c controller and Fascia
1hr > Assemble back HU and restore HU settings
Share share...
White Speedo, my very 1st D.I.Y MOD 2 years back with 4 SMD LED in each bulb holder
